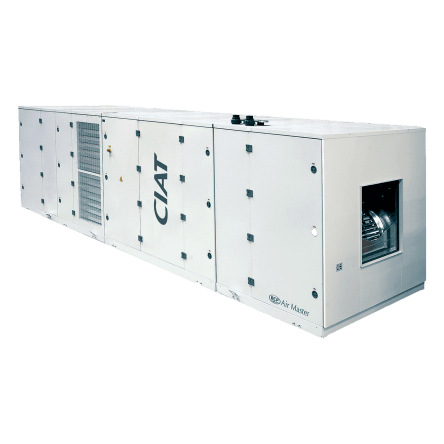

Indoor or outdoor dehumidification units
AIR MASTER BCP

Dehumidification units by cooling circuit, with total condensing heat recovery, specially designed for conventional covered pools and other dehumidification applications.
These units have been designed for indoor or outdoor installations.

Dehumidification capacity: 67 to 127kg/h
Refrigerant: R-407C
Compressor type: Scroll

Six models available.

  • Air flow rates: 16 000 to 36 000 m³/h
  • Dehumidifiacation capacity: 66 to 126,5 kg/h

Operating range:

  • Heating capacity: 69,5 kW to 148,7 kW
  • Cooling capacity : 92,1 kW to 148,7 kW
  • Packaged unit
  • Casing constructed of galvanised steel sandwich panels coated on the inside and outside with polyester paint
  • Self-supporting frame, hinged doors
  • Three refrigerant circuits,  three scroll compressors
  • G3 regenerative filter
  • Direct expansion coil with protective polyurethane coating
  • Special brazed-plate water-cooled condenser for swimming pool water
  • Sloped stainless steel pan
  • Centrifugal fan
  • Electronic control with humidity sensor and digital display, control of different parameters, fault and alarms diagnosis and scheduling
  • A wide range of options
  • Optimisation of energy consumption, energy recovery
  • Energy savings: water heating and swimming pool water heating
  • High-efficiency COP = 5
  • Free-cooling operation which generates significant savings
  • Overall management of swimming pool heating thanks to a heat exchanger (gasketed plate)
  • Easy to install, various assemblies
  • Highly efficient electronic control

Six models available.

  • Air flow rates: 16 000 to 36 000 m³/h
  • Dehumidifiacation capacity: 66 to 126,5 kg/h

Operating range:

  • Heating capacity: 69,5 kW to 148,7 kW
  • Cooling capacity : 92,1 kW to 148,7 kW
  • Packaged unit
  • Casing constructed of galvanised steel sandwich panels coated on the inside and outside with polyester paint
  • Self-supporting frame, hinged doors
  • Three refrigerant circuits,  three scroll compressors
  • G3 regenerative filter
  • Direct expansion coil with protective polyurethane coating
  • Special brazed-plate water-cooled condenser for swimming pool water
  • Sloped stainless steel pan
  • Centrifugal fan
  • Electronic control with humidity sensor and digital display, control of different parameters, fault and alarms diagnosis and scheduling
  • A wide range of options
  • Optimisation of energy consumption, energy recovery
  • Energy savings: water heating and swimming pool water heating
  • High-efficiency COP = 5
  • Free-cooling operation which generates significant savings
  • Overall management of swimming pool heating thanks to a heat exchanger (gasketed plate)
  • Easy to install, various assemblies
  • Highly efficient electronic control
Documents

Controls manual

Instruction manual

Dimensions diagram

Electrical diagram
