Modular air handling units

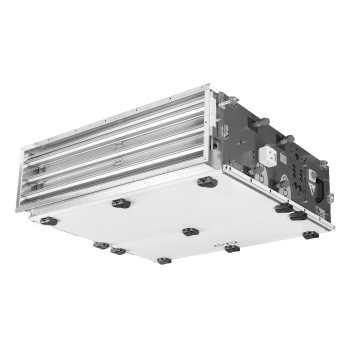

AIR COMPACT™

AIR COMPACTTM is particularly well suited to the air conditioning of separate zones. It features high static pressure and requires low ceiling heights. The range features a wide array of housings and accessories. Available in horizontal or vertical configurations for indoor installation.

Air flow rate: 1 500 to 6 000 m3/h
Ultra-slim AHU
Available in single-flow or dual-flow version

The range is composed of 3 sizes from 1 500 to 6 000 m3/h (thickness: 400 mm).
Available pressure from 100 to 1 000 Pa with high performance and minimum sound level.
The widths of the 3 sizes of AIR COMPACT 25, 40, 60 are 750 mm, 1 310 mm and 1 880 mm.
Optimised performance thanks to the control system.

Operating pressure: up to 1 000 Pa

This air handling unit is particularly well suited to the air conditioning of separate zones. It features high static pressure and requires low ceiling heights. The range features a wide array of housing and accessories. Available in horizontal or vertical configurations for indoor installation.

  • All usual functions, such as damper, opacimetric filter, water or electric heating, chilled-water or direct-expansion cooling, ventilation, mixing, distribution plenum, quiet operation, recovery units,
  • Installation: ceiling or floor (horizontal units) or wall-mounted (vertical units),
  • Removable hinged doors,
  • Wide selection of additional equipment.
  • Complete range with many easy-to install options (thickness: 400 mm)
  • Low sound level
  • Double-skin casing insulated with 25 mm thick mineral wool insulation
  • External sides made of galvanized steel with coated finish
  • Components easily accessible via a hinged door with quarter-turn latch
  • Adapts easily to duct network conditions using AC fan with frequency inverter of EC fan
  • Pressure tappings on filtration section
  • Easy to maintain
  • Optional control equipment

The range is composed of 3 sizes from 1 500 to 6 000 m3/h (thickness: 400 mm).
Available pressure from 100 to 1 000 Pa with high performance and minimum sound level.
The widths of the 3 sizes of AIR COMPACT 25, 40, 60 are 750 mm, 1 310 mm and 1 880 mm.
Optimised performance thanks to the control system.

Operating pressure: up to 1 000 Pa

This air handling unit is particularly well suited to the air conditioning of separate zones. It features high static pressure and requires low ceiling heights. The range features a wide array of housing and accessories. Available in horizontal or vertical configurations for indoor installation.

  • All usual functions, such as damper, opacimetric filter, water or electric heating, chilled-water or direct-expansion cooling, ventilation, mixing, distribution plenum, quiet operation, recovery units,
  • Installation: ceiling or floor (horizontal units) or wall-mounted (vertical units),
  • Removable hinged doors,
  • Wide selection of additional equipment.
  • Complete range with many easy-to install options (thickness: 400 mm)
  • Low sound level
  • Double-skin casing insulated with 25 mm thick mineral wool insulation
  • External sides made of galvanized steel with coated finish
  • Components easily accessible via a hinged door with quarter-turn latch
  • Adapts easily to duct network conditions using AC fan with frequency inverter of EC fan
  • Pressure tappings on filtration section
  • Easy to maintain
  • Optional control equipment
