Thermostat - V6+ V6+
Thermostat - V6+
V6+

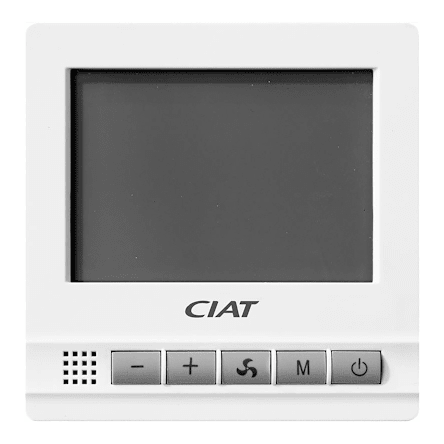

The Carrier V6+ thermostat is an entry-level, wall-mounted model designed for controlling hydraulic fan coil units with AC or EC motors. Offering essential functions such as automatic hot/cold changeover, frost protection, electrical heater and weekly programming, it guarantees reliable thermal comfort and energy savings in residential or commercial settings.
The V6+ electronic thermostat is available for water control and ventilation. For water control, it acts on valves with 230V TOR thermal motors. For ventilation, it can be used with either:
- 3-speed 230V AC motor
- 3-speed 0–10 V EC motor
The V6+ thermostat range comprises the following models:
- V6+A for a 2-pipe AC motor
- V6+B for a 4-pipe AC motor
- V6+C for 2-pipe EC motor + electrical heater
- V6+D for a 4-pipe EC motor
The thermostat is designed for flush mounting, screwing into a standard 60 mm flush-mounting box.
It can also be surface-mounted using the supplied accessory.
Features:
- Manual or automatic switching between heating and cooling
- Four operating modes: Comfort, Economy, Frost Protection, and Off
- Power supply: 230 V
- Manual or automatic three-speed fan control
- Weekly programming
- Changeover via sensor or dry contact
- Electrical heater (V6+C only for a two-pipe, two-wire system)
- It has a potential-free input for a window contact
- The change-over probe kit: enables the automatic detection of the changeover from heating to cooling mode (and vice versa) in two-pipe systems.
The kit includes a probe, a 2.5-meter cable, Faston lugs, and an adapter. This essential device ensures automatic mode changeover according to the temperature of the water circulating in the system. - Surface-Mounted Box: Used for installing the thermostat on the surface of a wall when flush-mounting is not possible. Ensures clean, discreet, and protected wall mounting.
- Relay kit: Mandatory for controlling electrical heater up to 2,000W.
