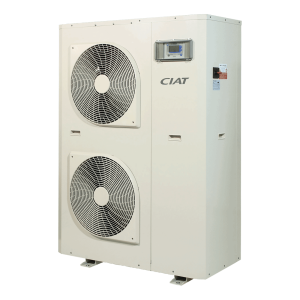

Inverter air-cooled chillers EREBA™ 17-21
Inverter air-cooled chillers
EREBA™ 17-21
The EREBA air-to-water heat pump is designed for heating and cooling applications in new, existing individual homes and small businesses models.
Refrigerant: R-410A
Cooling capacity: 15-19 kW
Heating capacity: 17-21 kW
Three-phase water chiller
2 models available, sizes 17 and 21
Low-power air-source water chiller for cooling in tertiary environments: offices, commercial premises, etc. Thanks to its operating range, this product can be connected to different types of emitter:
- underfloor heating/cooling systems
- terminal units (fan coil units, water cassettes)
- small air handling units
EREBA range is designed to be installed outdoors.
- R-410A refrigerant
- Complete integrated hydraulic module: variable speed accelerator pump, 8L expansion tank, screen filter, safety valve
- Installation in series up to 4 units
- Inverter twin rotary DC compressor
- Superior frost protection with integrated electric heat trace cable
- RAL 7035 metal housing
- WUI remote control terminal supplied as standard
- Communication with CMS using ModBus protocol or control via potential-free (dry) contacts
- Eurovent certification
- Operating range down to an outdoor temperature of -10°C
- Silent operation
- Remote control terminal with quick access to main functions
- Pre-configured water law for faster start up
Three-phase water chiller
2 models available, sizes 17 and 21
Low-power air-source water chiller for cooling in tertiary environments: offices, commercial premises, etc. Thanks to its operating range, this product can be connected to different types of emitter:
- underfloor heating/cooling systems
- terminal units (fan coil units, water cassettes)
- small air handling units
EREBA range is designed to be installed outdoors.
- R-410A refrigerant
- Complete integrated hydraulic module: variable speed accelerator pump, 8L expansion tank, screen filter, safety valve
- Installation in series up to 4 units
- Inverter twin rotary DC compressor
- Superior frost protection with integrated electric heat trace cable
- RAL 7035 metal housing
- WUI remote control terminal supplied as standard
- Communication with CMS using ModBus protocol or control via potential-free (dry) contacts
- Eurovent certification
- Operating range down to an outdoor temperature of -10°C
- Silent operation
- Remote control terminal with quick access to main functions
- Pre-configured water law for faster start up
Eurovent certified product performance
This product performance complies with the European standards tests, EN 1048, more specifically, under the exact customer-defined operating conditions. The Eurovent certification guarantees the technical performance rating stated on the product.
