Water chillers and water-to-water heat pumps

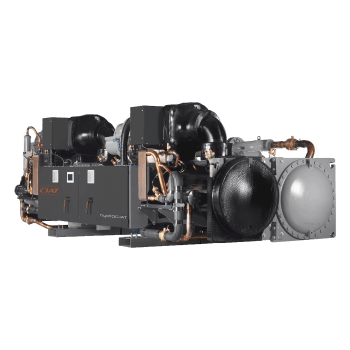

HYDROCIAT™ LW ST / LW HE

HYDROCIAT water-cooled chillers & heat pumps ranges provide an optimal solution for all cooling applications used for the offices, healthcare, administration, retail and collective housing sectors.

Refrigerant: R-134a
Compressor type: Screw
Cooling capacity: 273 to 1 756 kW
Heating capacity: 317 to 1 989 kW


heating-icon-white
cooling-only-icon-white
cooling-and-heating-icon-white
HFC-R-134a-refrigerant-icon-white

31 models from size 708 to 4 628.

Two energy versions available:

  • Standard energy version (ST), 20 sizes
  • High energy efficiency version (HE), 11 sizes

Two sound level versions available:

  • Standard
  • Low noise 
  • R-134a refrigerant
  • Compact equipment with a small footprint for installation indoors
  • Frame made of RAL 7024 painted sheet metal paneling
  • 1 or 2 independent refrigerating circuits
  • Twin screw compressor(s) equipped with a discharge silencer
  • Shell and tube type evaporator equipped with a water flow controller
  • Shell and tube water-cooled condenser with integrated oil separator
  • Electrical cabinet equipped with remote control transformer and safety switch
  • Control module with CONNECT TOUCH microprocessor and a large range of auto adaptive functions
  • Interface with intuitive multilingual 5’’ colour touchscreen
  • Web server (IP) for remote access to the interface screen and fault warning emails
  • Technical documentation integrated into the controller
  • Communication with the CMS via the ModBus/JBus protocol as standard (LON and BacNet optional)

Reduced energy consumption > high performance and efficiency

Reduced nuisance noise > low sound levels
Two acoustic performance levels (standard and low noise) ensuring all sound level constraints can be met

Multi-solution > one solution for all heating and cooling applications

  • Drainage adapted to the various types of cooling tower or dry cooler installations
  • Heat pump operation optional

HYDROCIAT meets all the needs of industry and the service sector

  • Increased chilled water output temperature range, from +20°C down to -12°C (optional) using brine
  • Hot water output temperature ranges from +20°C to +63°C

Reduced installation surface area > devices are compact
The HYDROCIAT has compact dimensions. The footprint and the overall volume of the device have been optimized to enable them to be easily integrated into any machine room

Quick, easy maintenance > excellent accessibility
Quick access to all refrigeration and electrical components to facilitate maintenance operations

Quick installation > easy connections
The ease of installation of the HYDROCIAT really sets it apart:

  • The surface area required is limited to the dimensions of the appliance
  • Simple three-phase 400V wiring, with no neutral, thanks to the control transformer included

31 models from size 708 to 4 628.

Two energy versions available:

  • Standard energy version (ST), 20 sizes
  • High energy efficiency version (HE), 11 sizes

Two sound level versions available:

  • Standard
  • Low noise 
  • R-134a refrigerant
  • Compact equipment with a small footprint for installation indoors
  • Frame made of RAL 7024 painted sheet metal paneling
  • 1 or 2 independent refrigerating circuits
  • Twin screw compressor(s) equipped with a discharge silencer
  • Shell and tube type evaporator equipped with a water flow controller
  • Shell and tube water-cooled condenser with integrated oil separator
  • Electrical cabinet equipped with remote control transformer and safety switch
  • Control module with CONNECT TOUCH microprocessor and a large range of auto adaptive functions
  • Interface with intuitive multilingual 5’’ colour touchscreen
  • Web server (IP) for remote access to the interface screen and fault warning emails
  • Technical documentation integrated into the controller
  • Communication with the CMS via the ModBus/JBus protocol as standard (LON and BacNet optional)

Reduced energy consumption > high performance and efficiency

Reduced nuisance noise > low sound levels
Two acoustic performance levels (standard and low noise) ensuring all sound level constraints can be met

Multi-solution > one solution for all heating and cooling applications

  • Drainage adapted to the various types of cooling tower or dry cooler installations
  • Heat pump operation optional

HYDROCIAT meets all the needs of industry and the service sector

  • Increased chilled water output temperature range, from +20°C down to -12°C (optional) using brine
  • Hot water output temperature ranges from +20°C to +63°C

Reduced installation surface area > devices are compact
The HYDROCIAT has compact dimensions. The footprint and the overall volume of the device have been optimized to enable them to be easily integrated into any machine room

Quick, easy maintenance > excellent accessibility
Quick access to all refrigeration and electrical components to facilitate maintenance operations

Quick installation > easy connections
The ease of installation of the HYDROCIAT really sets it apart:

  • The surface area required is limited to the dimensions of the appliance
  • Simple three-phase 400V wiring, with no neutral, thanks to the control transformer included
