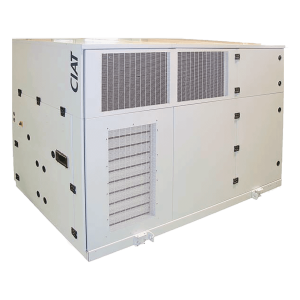

Indoor or outdoor dehumidification units AQUAIR® BCP
Indoor or outdoor dehumidification units
AQUAIR® BCP
Dehumidification units by cooling circuit, with total recuperation of the heat of condensation, especially designed for covered pools and other dehumidification applications.
These units have been designed for indoor installations; optionally for outdoor installations.
Dehumidification capacity: 22 to 75 kg/h
Refrigerant: R-407C
Compressor type: Scroll
7 models available
Water removal capacity: 22 to 74 kg/h
Water removal capacity: 22 to 74 kg/h
- Packaged unit
- Casing constructed of galvanised steel sandwich panels coated on the inside and outside with polyester paint, with glass fiber insulation of 25 mm
- Free-standing frame, hinged doors
- One air circuit
- Two or three refrigerant circuits, two or three compressors, R-407C refrigerant
- G3 regenerative filter
- Direct expansion coil and air-cooled condenser with protective polyurethane coating
- Brazed-plate water-cooled condenser for swimming pool water
- Sloped stainless steel pan
- Centrifugal fan
- Complete electrical cabinet
- CIATpool control by microprocessor composed by main board and uer terminal (pGD) with many functions (dehumidification , settings control, failure analysis and alarms, programmable operating times...)
- Free cooling mixing box as option
- A wide range of options
- Heating and dehumidification of indoor pools
- Optimized energy consumption, heat recovery in air or water swimming pool
- Free cooling operation as option which saves a much energy
- High-performance electronic control
- Uses a non-ozone-depleting refrigerant
7 models available
Water removal capacity: 22 to 74 kg/h
Water removal capacity: 22 to 74 kg/h
- Packaged unit
- Casing constructed of galvanised steel sandwich panels coated on the inside and outside with polyester paint, with glass fiber insulation of 25 mm
- Free-standing frame, hinged doors
- One air circuit
- Two or three refrigerant circuits, two or three compressors, R-407C refrigerant
- G3 regenerative filter
- Direct expansion coil and air-cooled condenser with protective polyurethane coating
- Brazed-plate water-cooled condenser for swimming pool water
- Sloped stainless steel pan
- Centrifugal fan
- Complete electrical cabinet
- CIATpool control by microprocessor composed by main board and uer terminal (pGD) with many functions (dehumidification , settings control, failure analysis and alarms, programmable operating times...)
- Free cooling mixing box as option
- A wide range of options
- Heating and dehumidification of indoor pools
- Optimized energy consumption, heat recovery in air or water swimming pool
- Free cooling operation as option which saves a much energy
- High-performance electronic control
- Uses a non-ozone-depleting refrigerant
Documents
Controls manual
Instruction manual
Dimensions diagram
Electrical diagram
