Indoor dehumidification units

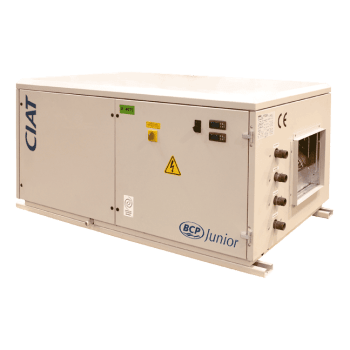

JUNIOR™ BCP

Dehumidification units by cooling circuit with total condensation heat recovery, specially designed for conventional covered swimming pools and other dehumidification applications.
These units have been designed for indoor assembly.

Dehumidification capacity: 4 to 15 kg/h
Refrigerant: R-407C
Compressor type: Scroll


dehumidification-icon-white
air-filtration-icon-white
heating-icon-white
picto-free-cooling-white

Eight models available from 20 to 90
Water removal capacity: 4 to 15 kg/h

  • Packaged unit
  • Casing constructed of galvanised steel sandwich panels
  • Free-standing frame, rubber-gasketed closure panels for a tight seal
  • One air circuit
  • One refrigeration circuit, one scroll compressor, R-407C refrigerant
  • Washable regenerative filter
  • Direct expansion coil and air-cooled condenser with protective polyurethane coating
  • Brazed-plate water-cooled condenser for swimming pools: optional on small models
  • Sloped stainless steel pan
  • Centrifugal fan
  • Complete electrical cabinet, electronic control with humidity sensor and digital display
  • A wide range of options
  • Heating and dehumidification of indoor pools
  • Sized to fit through doorways
  • Optimized energy consumption, heat recovery
  • High-performance electronic control
  • Uses a non-ozone-depleting refrigerant

Eight models available from 20 to 90
Water removal capacity: 4 to 15 kg/h

  • Packaged unit
  • Casing constructed of galvanised steel sandwich panels
  • Free-standing frame, rubber-gasketed closure panels for a tight seal
  • One air circuit
  • One refrigeration circuit, one scroll compressor, R-407C refrigerant
  • Washable regenerative filter
  • Direct expansion coil and air-cooled condenser with protective polyurethane coating
  • Brazed-plate water-cooled condenser for swimming pools: optional on small models
  • Sloped stainless steel pan
  • Centrifugal fan
  • Complete electrical cabinet, electronic control with humidity sensor and digital display
  • A wide range of options
  • Heating and dehumidification of indoor pools
  • Sized to fit through doorways
  • Optimized energy consumption, heat recovery
  • High-performance electronic control
  • Uses a non-ozone-depleting refrigerant
Documents

Commercial brochure

Controls manual

Instruction manual

Dimensions diagram

Electrical diagram
